KAP-1040 Model Detail

KAP-1040 Automatic Open-Mouth Bagging Machine

KAP-1040 is a flexible-configuration automatic open-mouth bagging machine for application-specific bagging projects such as citric acid, premix, starch, flour and selected additives. It can be configured with dedicated filling spout arrangements and deaeration options according to material characteristics and bagging requirements.

Up to 400 bags/hourDedicated filling spout configurationDeaeration optionCompact footprintComplete line integration
Build Your Packaging LineContact Our EngineersDownload Brochure

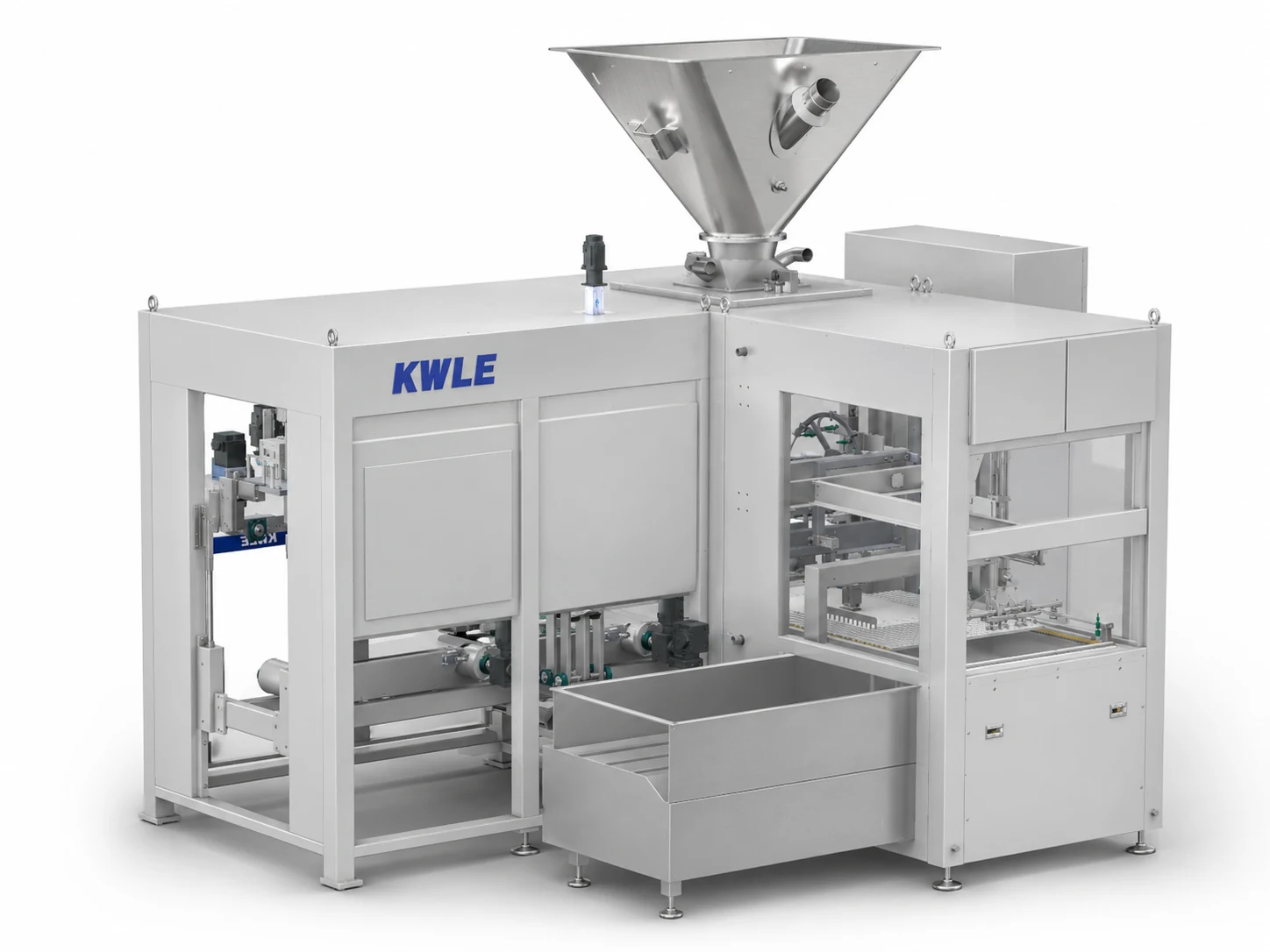

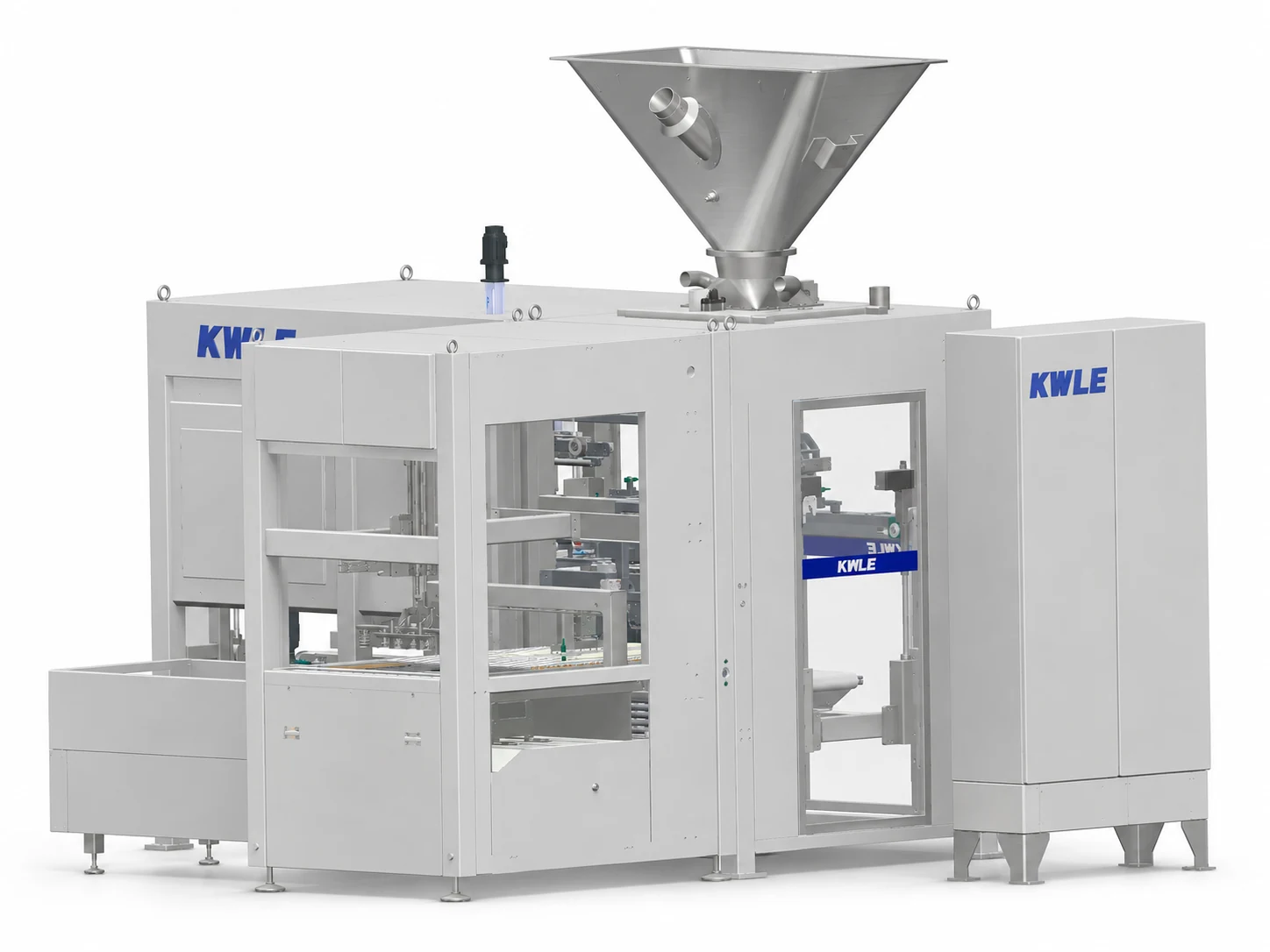

PROD-KAP-1040-HERO-01Product Visual

Key Specifications

Model

KAP-1040

Capacity

Up to 400 bags/hour

Bag types

Gusseted, gusseted flat bottom, and pillow bags

Bag materials

Paper, PE, laminated and non-laminated woven PP

Typical bag weight

10–50 kg

Typical applications

Citric Acid, Premix, Starch, Flour, Selected Additives

Final capacity depends on material flowability, bag specification, feeding method, sealing type and complete line configuration.

Features

Versatile application-specific handling

  • • Dedicated filling spout configurations can be selected according to material and bagging requirements.
  • • Suitable for citric acid, premix, starch, flour and selected additive applications.
  • • Compact configuration supports projects with limited plant space or tailored line layouts.

Controlled filling support

  • • Deaeration options can be configured when required by material characteristics.
  • • Filling and weighing modules can be matched according to bulk density, flowability and target capacity.
  • • Designed to support stable bag filling for application-specific material handling requirements.

Stable automatic operation

  • • Automatic bag placing, positioning and release for continuous operation.
  • • Bag detection helps confirm correct bag placement before filling.
  • • Controlled bag transfer helps reduce spillage between filling, closing and conveying.

Integrated weighing and feeding

  • • Works with gravity, belt or screw feeding configuration according to material characteristics.
  • • Net weighing configuration supports industrial bagging accuracy and repeatability.
  • • Feeding and weighing modules can be selected according to bulk density, flowability and target capacity.

Easy operation and maintenance

  • • PLC-based control system with operator interface for daily operation and parameter adjustment.
  • • Designed for easier troubleshooting, inspection and maintenance.
  • • Access-friendly structure supports cleaning and routine service work.
  • • Modular line configuration supports easier installation and commissioning.

Line-ready configuration

  • • Can connect with bag closing, conveying, check weighing, metal detection and palletizing modules.
  • • Supports complete line layout design according to plant space and downstream automation.

Available Machine Options

Dedicated filling spout configuration according to material and bag specification.
Deaeration option for materials requiring air release or more stable filling.
Full stainless steel construction for projects requiring stainless steel frames and structural parts.
Dust collection connection for cleaner filling conditions.
Bag closing system for sewing, heat sealing or project-specific closing requirements.
Bag turning, flattening or shaping devices before conveying.
Quick adjustment design for different bag sizes.
Weighing and feeding configuration selected according to material flowability and target capacity.
Interface for coding / printing equipment when required.

Technical Specifications

Capacity

Up to 400 bags/hour

Bag weight range

10–50 kg

Bag types

Gusseted, gusseted flat bottom, and pillow bags

Bag materials

Paper, PE, laminated and non-laminated woven PP

Bag dimensions

Bag length: 550–1150 mm; Bag width: 350–550 mm

Power supply

380/400V, 3PH, 50Hz (other voltages available)

Air supply

5.5–6 bar compressed air

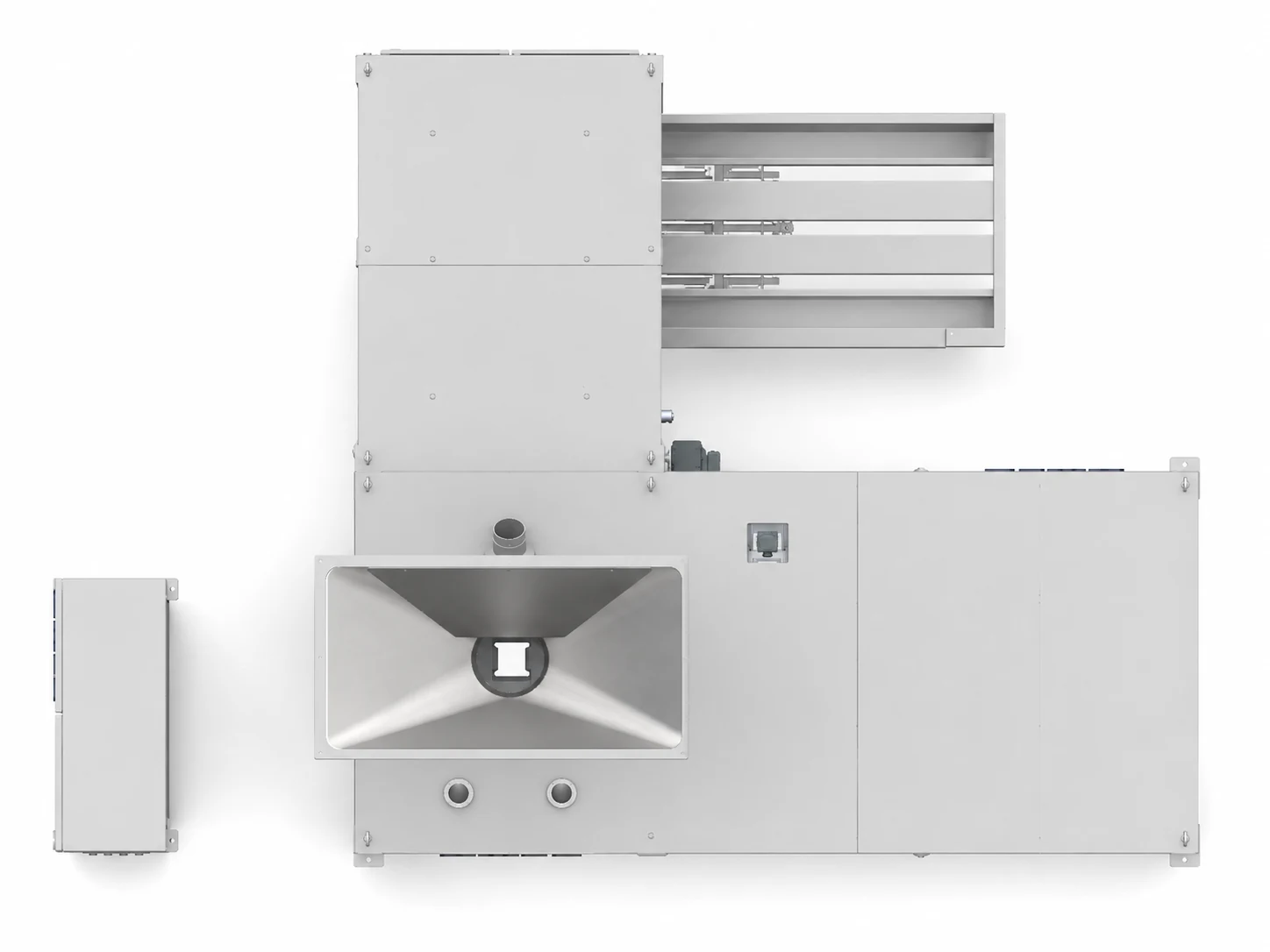

Typical footprint

Length xxxx mm × depth xxxx mm

Control system

PLC-based control system with operator interface

Typical footprint is for reference only; actual dimensions may vary according to equipment configuration and site layout.

Typical Applications

Citric AcidPremixStarchFlourSelected Additives

Engineering Selection Notes

KAP-1040 capacity and configuration depend on material characteristics, bulk density, target bag weight, bag specification, feeding method, weighing configuration, filling spout configuration, deaeration requirements, closing method, plant layout and downstream automation requirements. KWLE engineers will evaluate the proper filling spout, feeding, filling, deaeration and line configuration according to the project requirements.
