KAP Series
KAP Series Automatic Open-Mouth Bagging Machines
KAP Series machines are designed for automatic open-mouth bagging of granules, pellets, flakes, mixed materials and selected free-flowing powders. They can be integrated with weighing and feeding, bag closing, conveying, check weighing, metal detection and palletizing modules.

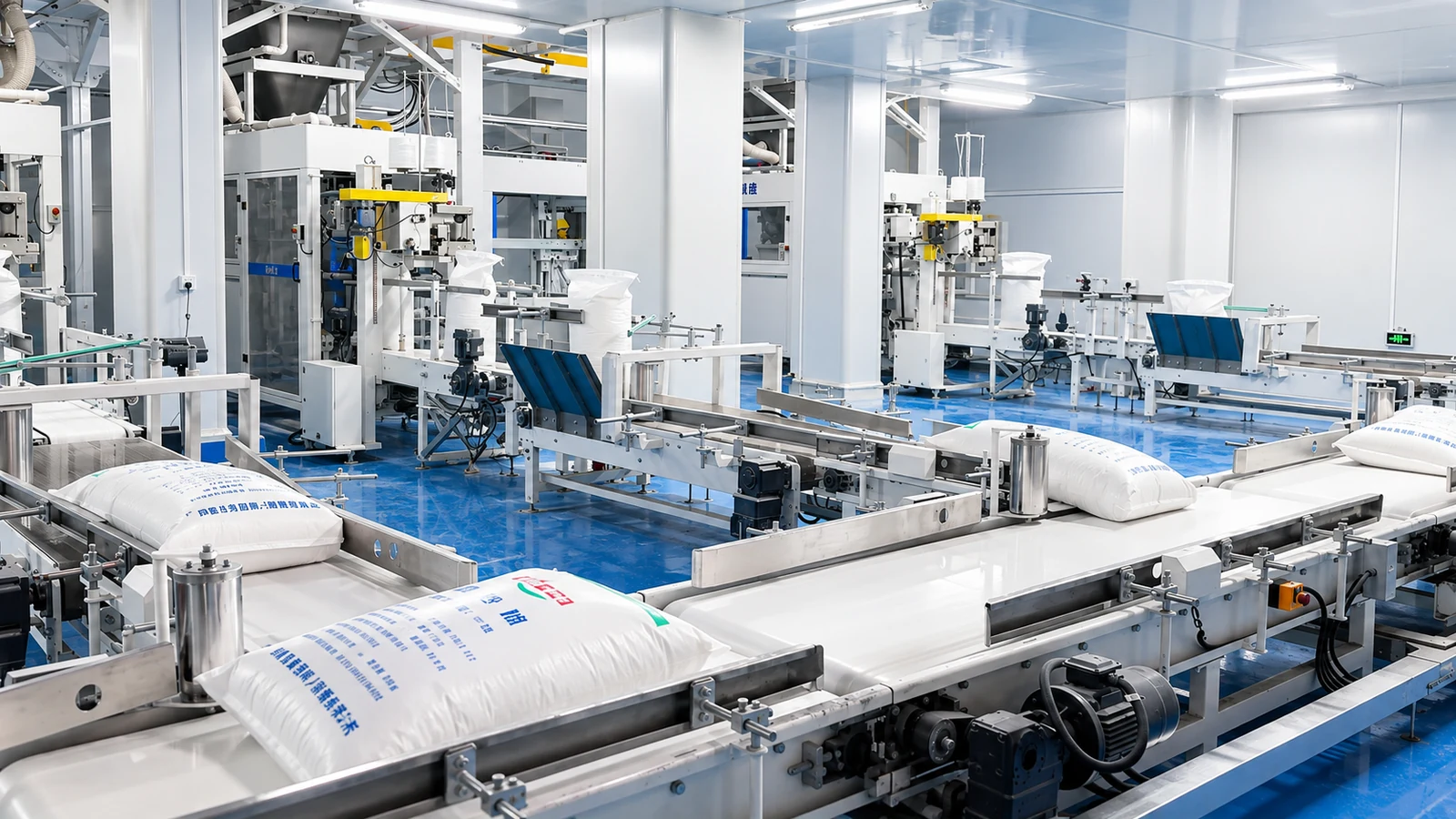

KAP Line Process Overview
KAP systems combine automatic bag placing, weighing and feeding, filling, bag closing and downstream conveying in one integrated open-mouth bagging line. Depending on the project, the line can be connected with check weighing, metal detection, palletizing and pallet load covering modules.
KAP Model Range
Select a model according to target capacity, material characteristics, bag specification and complete line configuration.
Final capacity depends on material flowability, bag specification, feeding method, sealing type and complete line configuration.

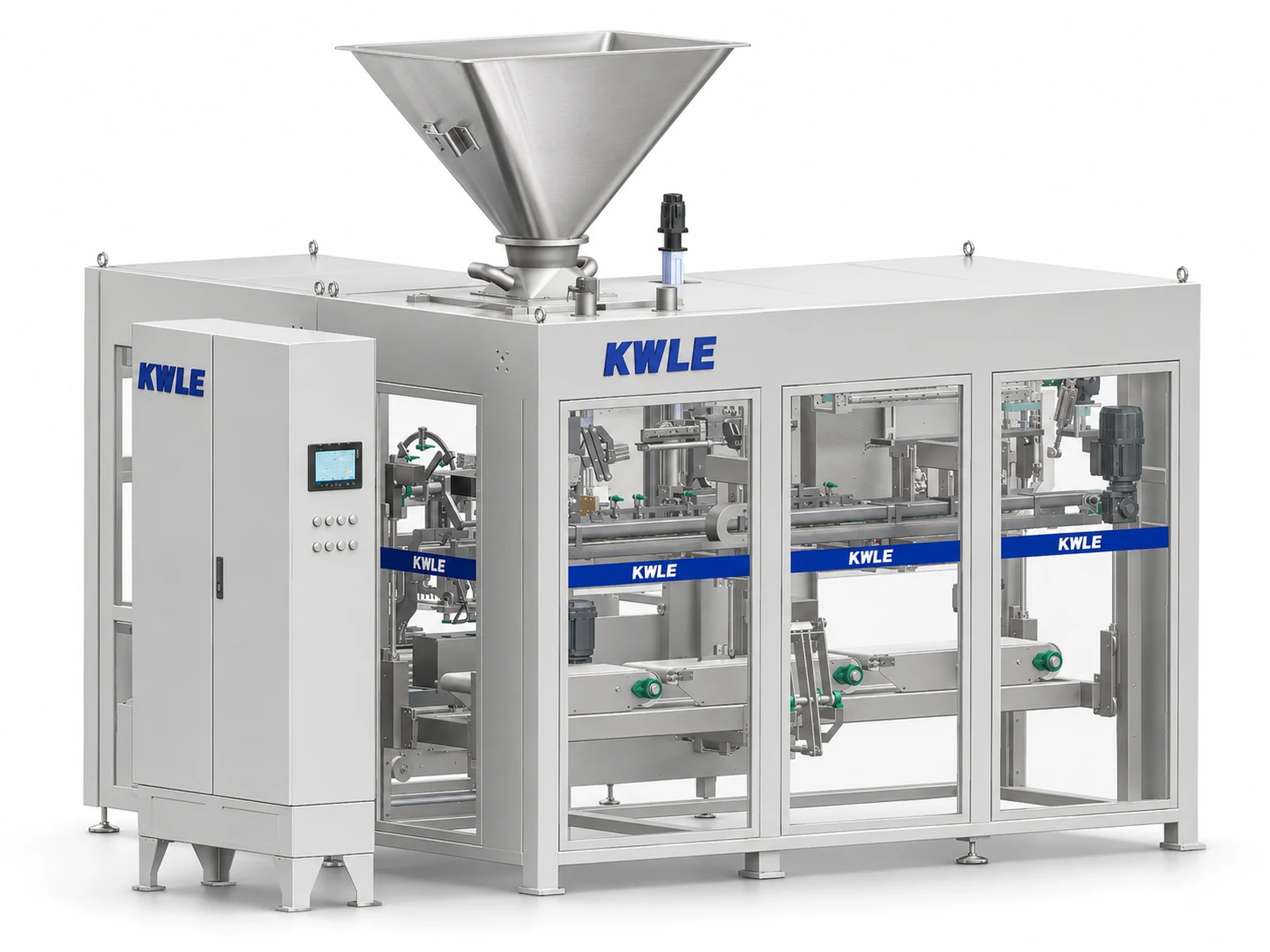

KAP-1040
Up to 400 bags/hour
Flexible-configuration automatic open-mouth bagging machine for application-specific material handling requirements.
Application examples
Citric Acid · Premix · Starch · Flour · Selected Additives
Configuration notes
Dedicated filling spout configuration · Deaeration option · Application-specific setup · Compact footprint · Complete line integration

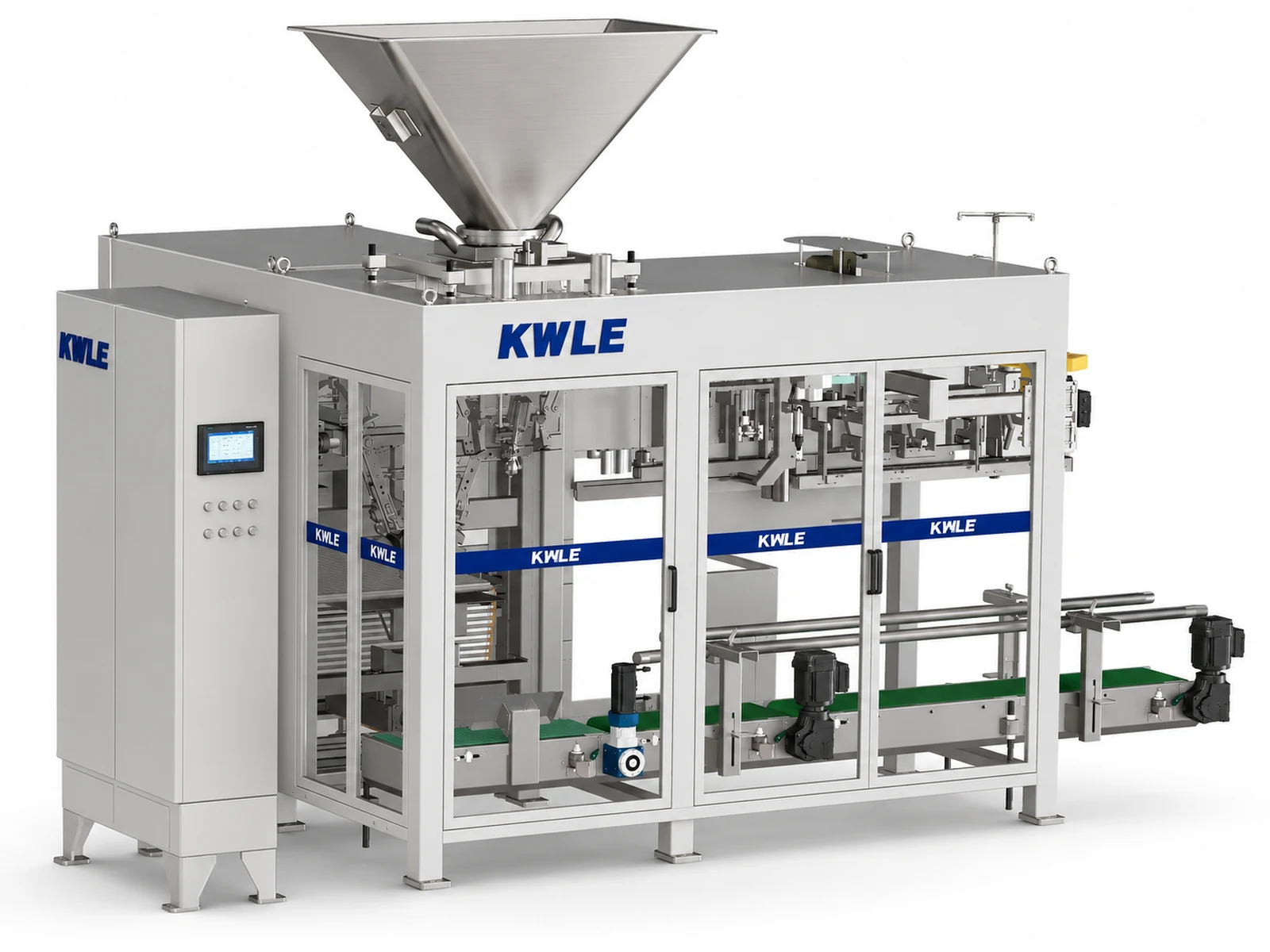

KAP-1060
Up to 600 bags/hour
Automatic open-mouth bagging machine for regular industrial bagging lines handling animal feed, corn grits, corn meal and feed by-products, with optional configuration for breathable woven PP bag applications.
Application examples
Animal Feed · Corn Grits · Corn Meal · Feed By-products
Configuration notes
Regular industrial bagging lines · Compact footprint · Dedicated bag opening device · Breathable woven PP bag applications · Complete line integration

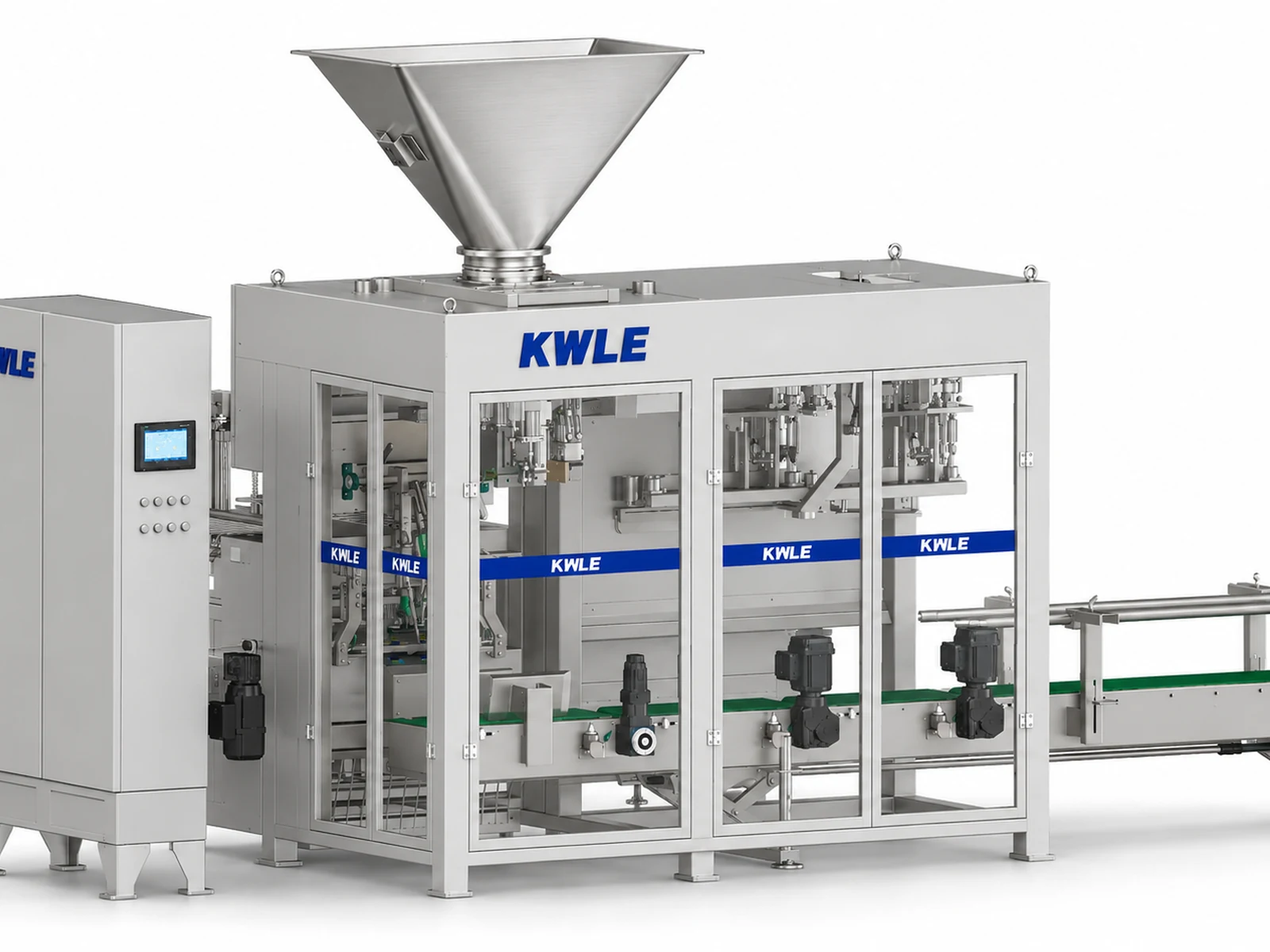

KAP-1080
Up to 800 bags/hour
Automatic open-mouth bagging machine for industrial bagging lines handling sugar, animal feed, rice, seeds, plastic pellets and fertilizer.
Application examples
Sugar · Animal Feed · Rice · Seeds · Plastic Pellets · Fertilizer
Configuration notes
Automatic bag placing · Coordinated filling and conveying · Complete line integration

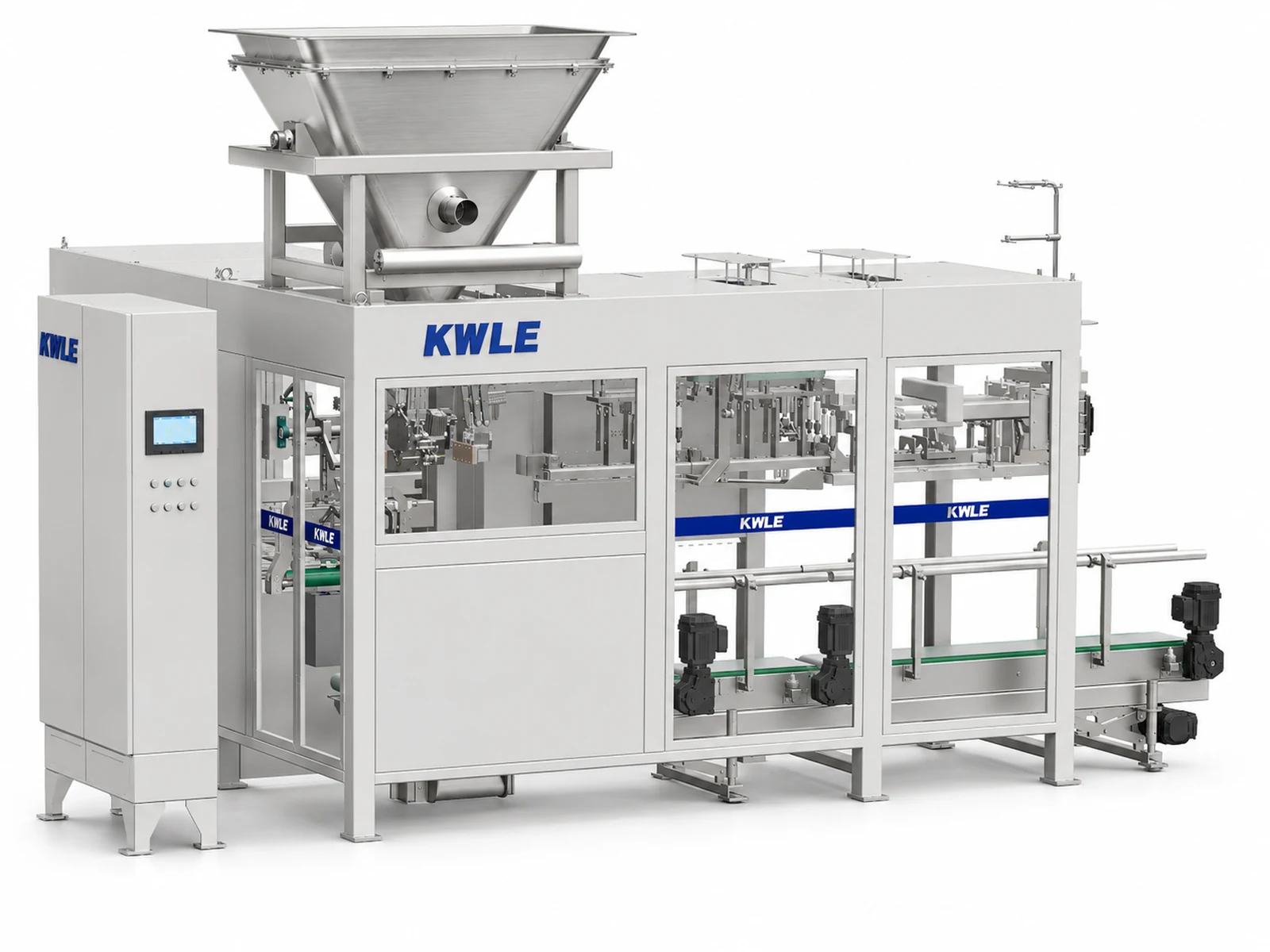

KAP-1120
Up to 1200 bags/hour
Automatic open-mouth bagging machine for industrial bagging lines requiring coordinated material flow, bag handling and downstream conveying.
Application examples
Sugar · Animal Feed · Rice · Seeds · Plastic Pellets · Fertilizer
Configuration notes
Automatic bag placing · Coordinated filling and conveying · Complete line integration

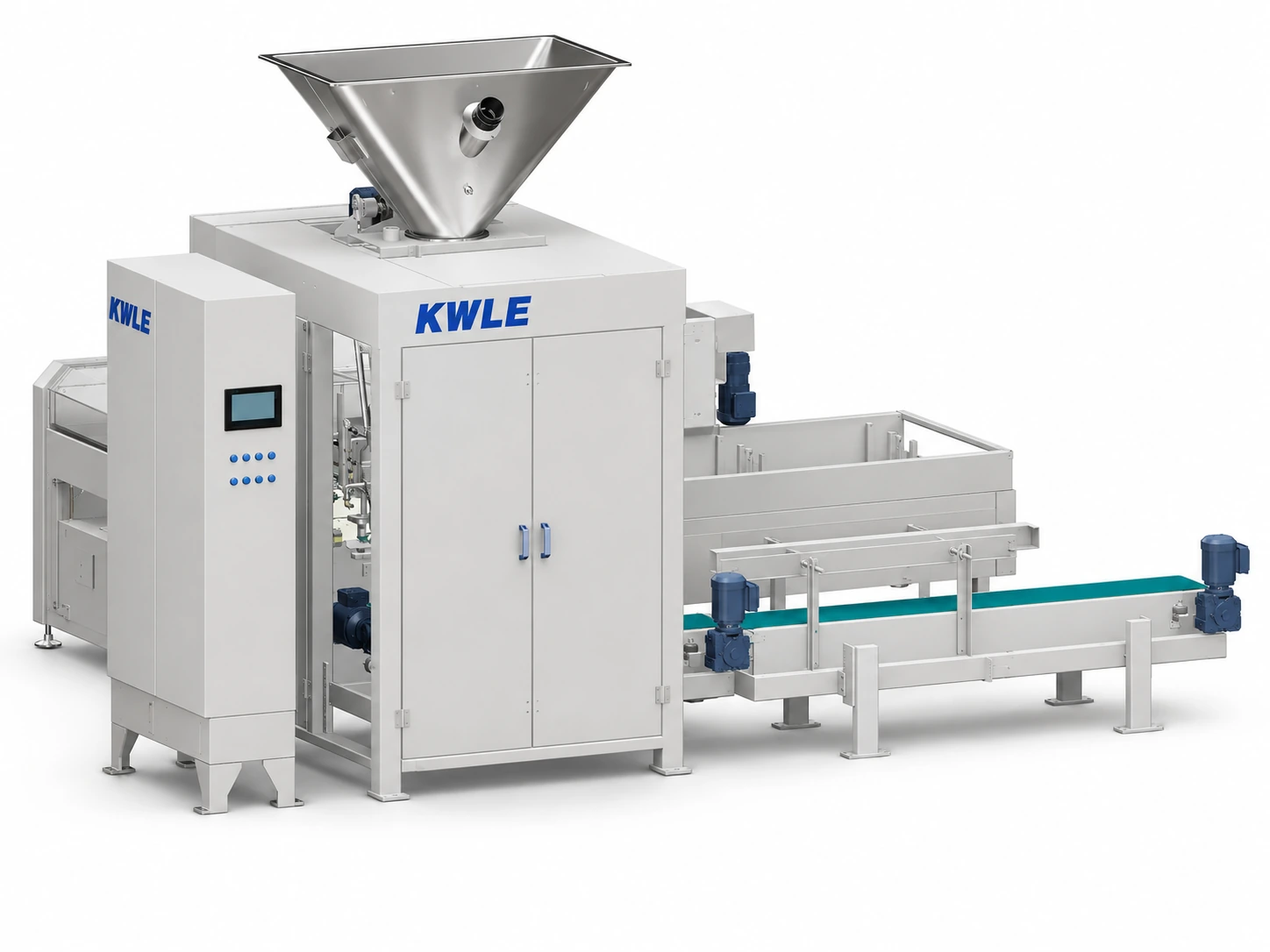

KAP-1140
Up to 1400 bags/hour
Automatic open-mouth bagging machine for large-scale industrial bagging lines with stable upstream feeding, bag supply and downstream coordination.
Application examples
Sugar · Animal Feed · Rice · Seeds · Plastic Pellets · Fertilizer
Configuration notes
Automatic bag placing · Coordinated filling and conveying · Complete line integration
Typical materials
Sugar · Feed · Citric Acid · Premix · Food Additives · Feed Additives · Glucose · Starch · Flour · Fertilizer & Chemicals
Line integration
KAP systems can be engineered as part of a complete bagging line, combining automatic bag placing, weighing and feeding, filling, closing, conveying and downstream automation.
Weighing & feeding · Bag placing · Filling · Sewing / heat sealing / closing · Conveying · Check weighing · Metal detection · Palletizing · Pallet load covering when required
Engineering Selection Notes
Final capacity and configuration depend on material characteristics, bag size, bag weight, feeding method, weighing configuration, closing method, layout and downstream automation requirements.
