KAP-1060 Model Detail

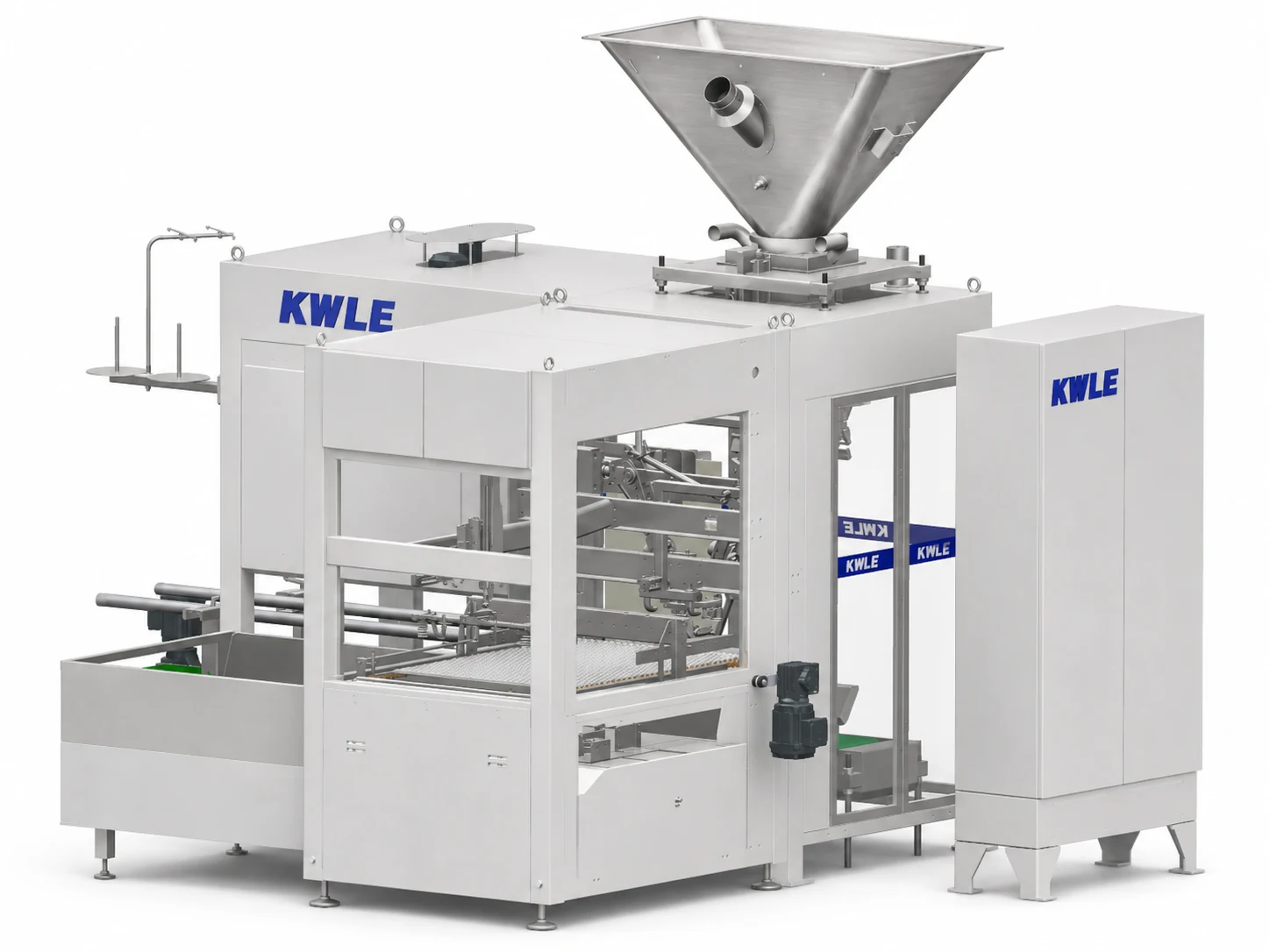

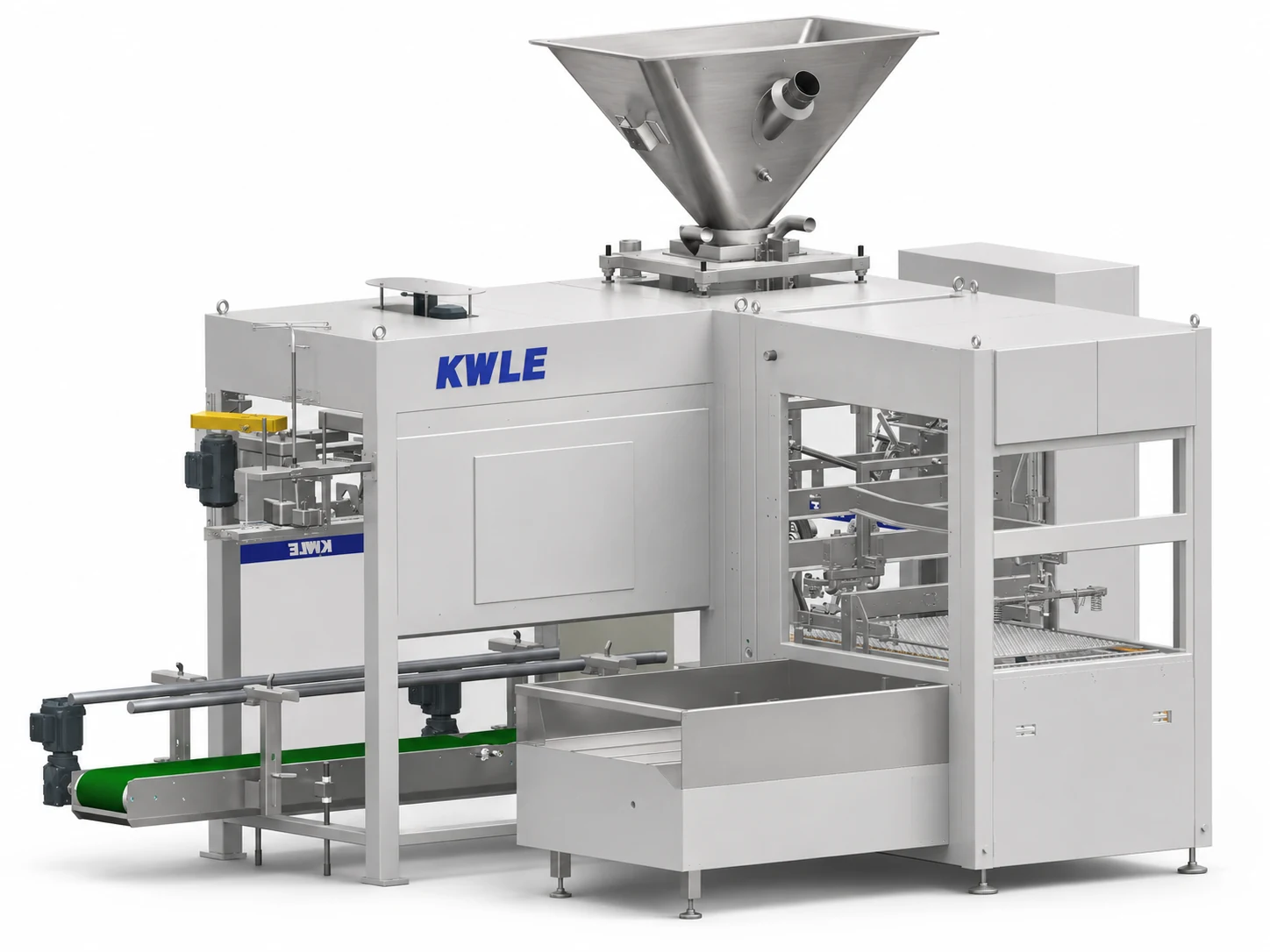

KAP-1060 Automatic Open-Mouth Bagging Machine

KAP-1060 is an automatic open-mouth bagging machine for regular industrial bagging lines handling animal feed, corn grits, corn meal and feed by-products. With an optional dedicated bag opening device configuration, it can also be adapted for breathable woven PP bag applications.

Up to 600 bags/hourAutomatic bag placingBreathable woven PP bagsCompact footprintLine integration
Build Your Packaging LineContact Our EngineersDownload Brochure
PROD-KAP-1060-HERO-01Product Visual

Key Specifications

Model

KAP-1060

Capacity

Up to 600 bags/hour

Bag types

Gusseted, gusseted flat bottom, and pillow bags

Bag materials

Paper, PE, laminated woven PP, and non-laminated woven PP bags

Typical bag weight

10–50 kg

Typical applications

Animal Feed, Corn Grits, Corn Meal, Feed By-products

Final capacity depends on material flowability, bag specification, feeding method, sealing type and complete line configuration.

Features

Versatile bag handling

  • • Dedicated bag opening device configurations for breathable woven PP bags.
  • • Compatible with paper, PE, laminated woven PP and non-laminated woven PP bags.
  • • Suitable for animal feed, corn grits, corn meal, feed by-products and regular industrial bulk material applications.

Stable automatic operation

  • • Automatic bag placing, positioning and release for continuous operation.
  • • Bag detection helps confirm correct bag placement before filling.
  • • Controlled bag transfer helps reduce spillage between filling, closing and conveying.
  • • Filling, weighing and transfer modules are coordinated for stable line operation.

Integrated weighing and feeding

  • • Works with gravity, belt or screw feeding configuration according to material characteristics.
  • • Net weighing configuration supports industrial bagging accuracy and repeatability.
  • • Feeding and weighing modules can be selected according to bulk density, flowability and target capacity.

Easy operation and maintenance

  • • PLC-based control system with operator interface for daily operation and parameter adjustment.
  • • Designed for easier troubleshooting, inspection and maintenance.
  • • Access-friendly structure supports cleaning and routine service work.
  • • Modular line configuration supports easier installation and commissioning.

Line-ready configuration

  • • Can connect with bag closing, conveying, check weighing, metal detection and palletizing modules.
  • • Supports complete line layout design according to plant space and downstream automation.

Available Machine Options

Full stainless steel construction for projects requiring stainless steel frames and structural parts.
Dust collection connection for cleaner filling conditions.
Product deaeration or bag settling assistance when required by material characteristics.
Bag closing system for sewing, heat sealing or project-specific closing requirements.
Bag turning, flattening or shaping devices before conveying.
Quick adjustment design for different bag sizes.
Weighing and feeding configuration selected according to material flowability and target capacity.
Optional dedicated bag opening device configuration for breathable woven PP bag applications.
Interface for coding / printing equipment when required.

Technical Specifications

Capacity

Up to 600 bags/hour

Bag weight range

10–50 kg

Bag types

Gusseted, gusseted flat bottom, and pillow bags

Bag materials

Paper, PE, laminated woven PP, and non-laminated woven PP bags

Bag dimensions

Bag length: xxxx mm; Bag width: xxxx mm

Power supply

380/400V, 3PH, 50Hz (other voltages available)

Air supply

5.5–6 bar compressed air

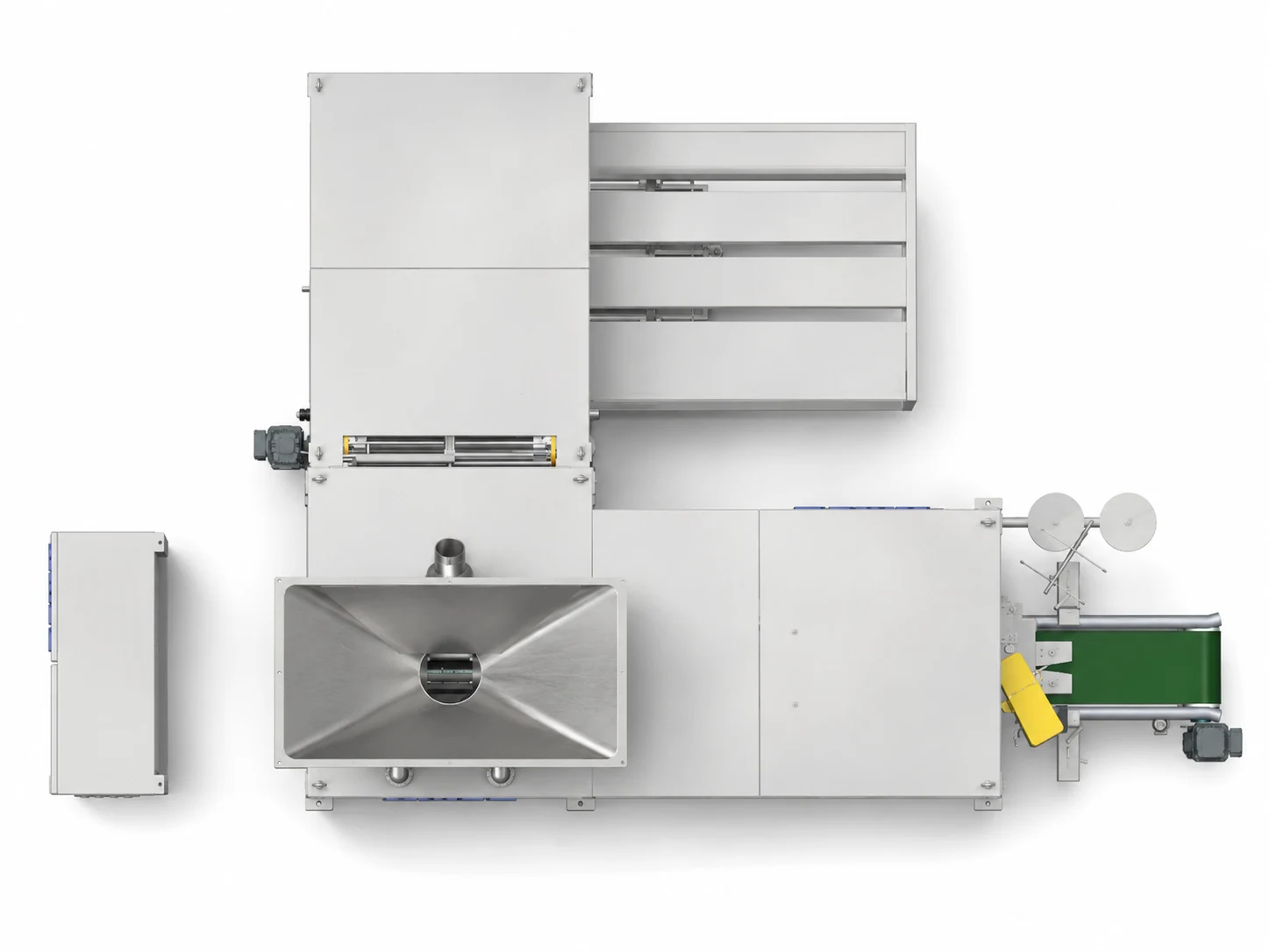

Typical footprint

Confirmed according to model and line configuration

Control system

PLC-based control system with operator interface

Typical footprint is for reference only; actual dimensions may vary according to equipment configuration and site layout.

Typical Applications

Animal FeedCorn GritsCorn MealFeed By-products

Engineering Selection Notes

KAP-1060 capacity and configuration depend on material characteristics, bulk density, target bag weight, bag specification, feeding method, weighing configuration, closing method, plant layout and downstream automation requirements. For breathable woven PP bags or feed by-product applications, KWLE engineers will evaluate the proper bag opening device, filling spout and line configuration.
