Versatile bag handling
- • Adjustable filling spout for different open-mouth bag sizes.
- • Supports common industrial bag materials used in 10–50 kg packaging.
- • Suitable for sugar, animal feed, rice, seeds, plastic pellets and fertilizer applications.
KAP-1080 Model Detail
KAP-1080 Automatic Open-Mouth Bagging Machine
KAP-1080 is a medium-high capacity automatic open-mouth bagging machine designed for industrial bagging lines handling sugar, animal feed, rice, seeds, plastic pellets and fertilizer. It combines automatic bag placing, weighing and feeding, filling, bag closing and downstream conveying in one integrated line configuration.
Up to 800 bags/hourAutomatic bag placing10–50 kg bagsLine-ready integration

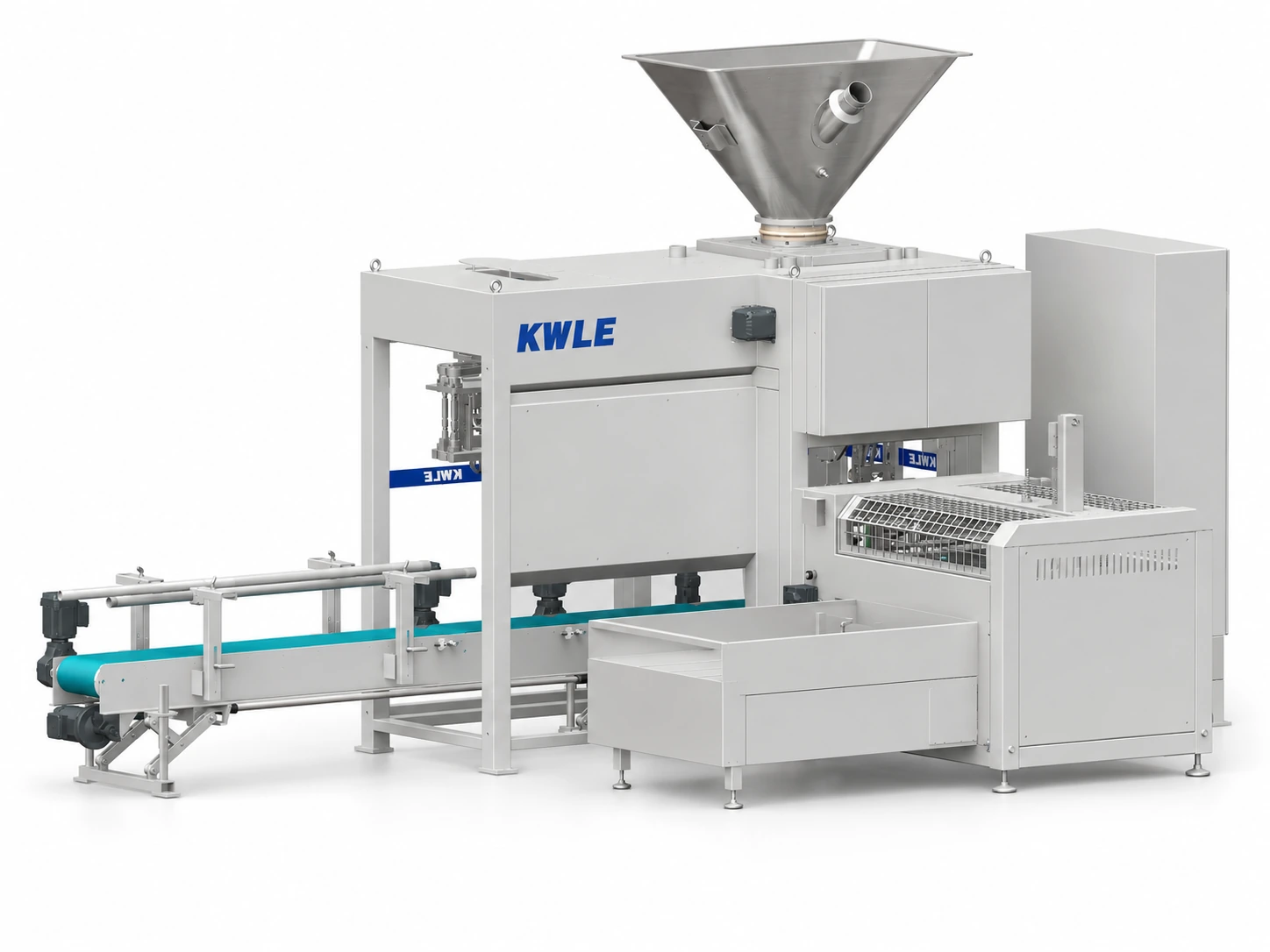

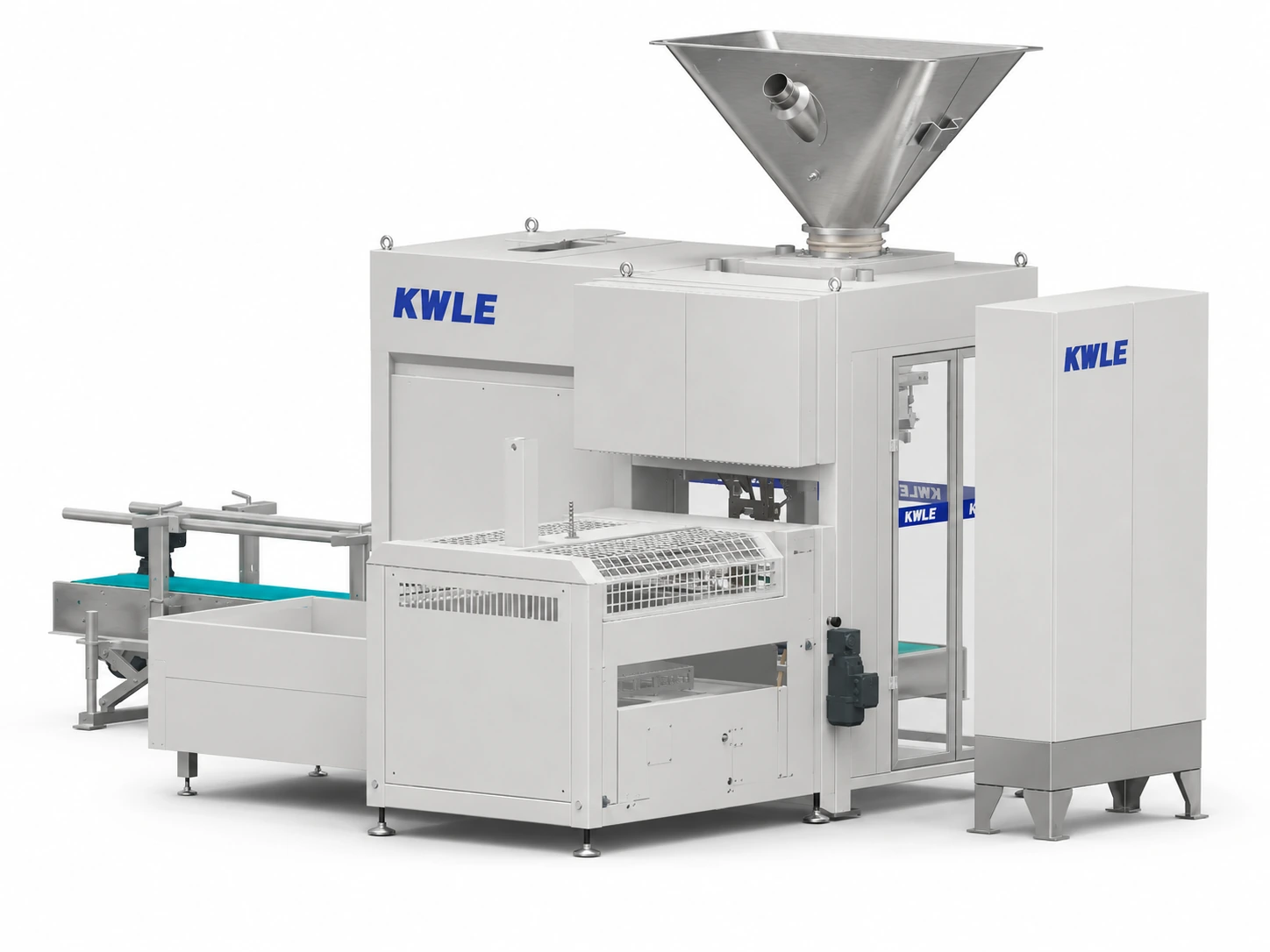

PROD-KAP-1080-HERO-01Product Visual
Key Specifications
Model
KAP-1080
Capacity
Up to 800 bags/hour
Bag types
Gusseted, gusseted flat bottom, and pillow bags
Bag materials
Paper, PE, laminated and non-laminated woven PP
Typical bag weight
10–50 kg
Typical applications
Sugar, Animal Feed, Rice, Seeds, Plastic Pellets, Fertilizer
Final capacity depends on material flowability, bag specification, feeding method, sealing type and complete line configuration.
Features
Stable automatic operation
- • Automatic bag placing, positioning and release for continuous bagging operation.
- • Bag detection and positioning logic help reduce misplacement and material spillage.
- • Designed for stable transfer from filling to closing and conveying.
Integrated weighing and feeding
- • Works with gravity, belt or screw feeding configuration according to material characteristics.
- • Net weighing configuration supports industrial bagging accuracy and repeatability.
- • Feeding and weighing modules can be selected according to bulk density, flowability and target capacity.
Easy operation and maintenance
- • PLC-based control system with operator interface for daily operation and parameter adjustment.
- • Designed for easier troubleshooting, inspection and maintenance.
- • Access-friendly structure supports cleaning and routine service work.
- • Modular line configuration supports easier installation and commissioning.
Line-ready configuration
- • Can connect with bag closing, conveying, check weighing, metal detection and palletizing modules.
- • Supports complete line layout design according to plant space and downstream automation.
Available Machine Options
Full stainless steel construction for projects requiring stainless steel frames and structural parts.
Weighing and feeding configuration selected according to material flowability and target capacity.
Bag closing system for sewing, heat sealing or project-specific closing requirements.
Dust collection connection for materials requiring cleaner filling conditions.
Product deaeration or bag settling assistance when required by material characteristics.
Bag turning, flattening or shaping devices before conveying.
Quick adjustment design for different bag sizes.
Gusset retention or bag mouth reforming when required by bag type.
Interface for coding / printing equipment when required.
Technical Specifications
Capacity
Up to 800 bags/hour
Bag weight range
10–50 kg
Bag types
Gusseted, gusseted flat bottom, and pillow bags
Bag materials
Paper, PE, laminated and non-laminated woven PP
Bag dimensions
Bag length: 550–1150 mm; Bag width: 350–550 mm
Power supply
380/400V, 3PH, 50Hz (other voltages available)
Air supply
5.5–6 bar compressed air

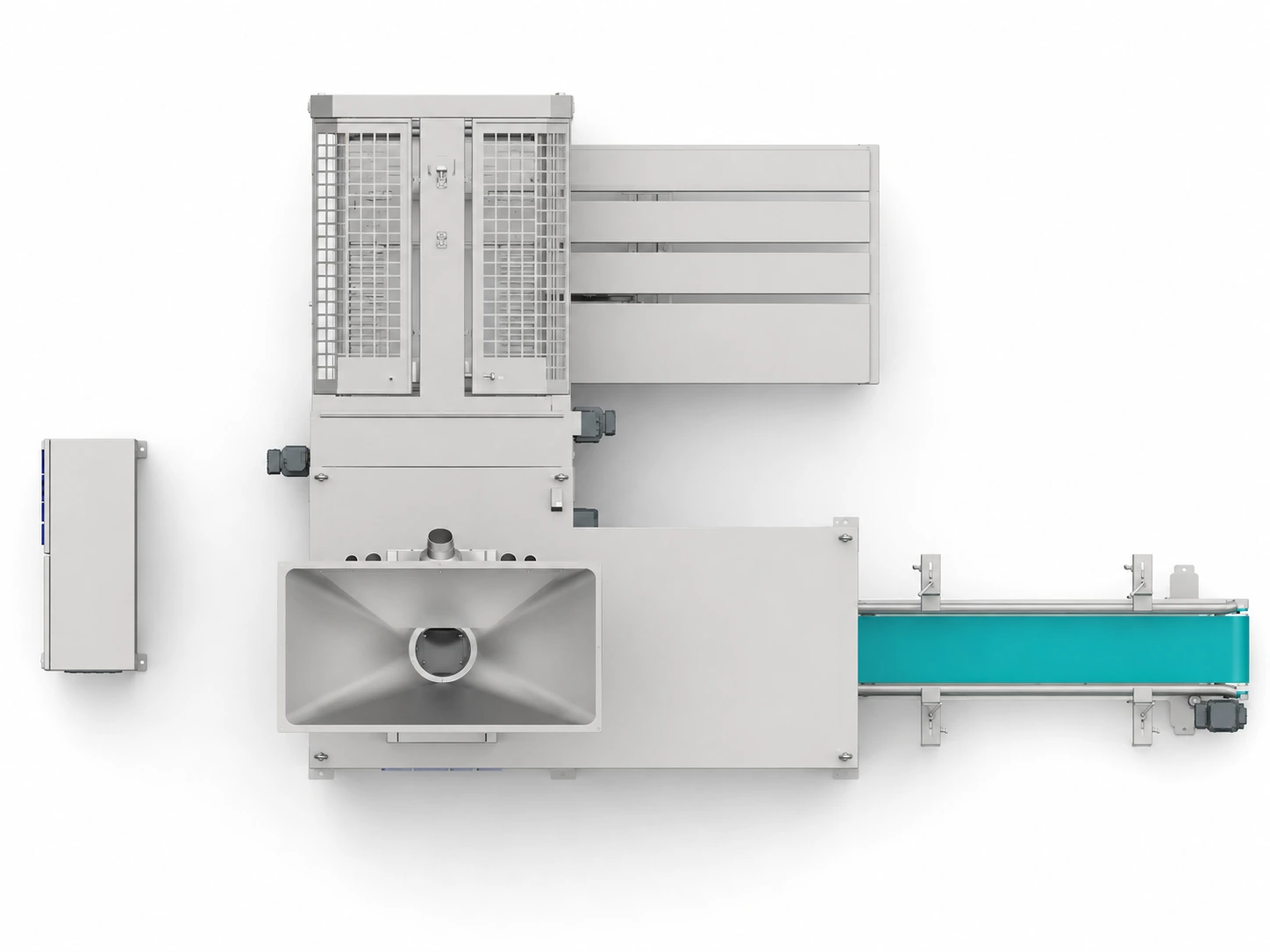

Typical footprint
Length 4335 mm × depth 2930 mm
Typical footprint is for reference only; actual dimensions may vary according to equipment configuration and site layout.
Typical Applications
SugarAnimal FeedRiceSeedsPlastic PelletsFertilizer
Engineering Selection Notes
KAP-1080 capacity and configuration depend on material characteristics, bulk density, target bag weight, bag specification, feeding method, weighing configuration, closing method, plant layout and downstream automation requirements. For dusty, fine or ultrafine powder applications, KWLE engineers will evaluate whether KAP or KBF is the more suitable filling approach.
