KAP-1140 Model Detail

KAP-1140 Automatic Open-Mouth Bagging Machine

KAP-1140 is an automatic open-mouth bagging machine for industrial bagging lines handling sugar, animal feed, rice, seeds, plastic pellets and fertilizer. It is designed for projects requiring coordinated automatic bag placing, weighing and feeding, filling, bag closing, downstream conveying and complete line integration.

Up to 1400 bags/hourAutomatic bag placingCoordinated filling and conveyingComplete line integration
Build Your Packaging LineContact Our EngineersDownload Brochure

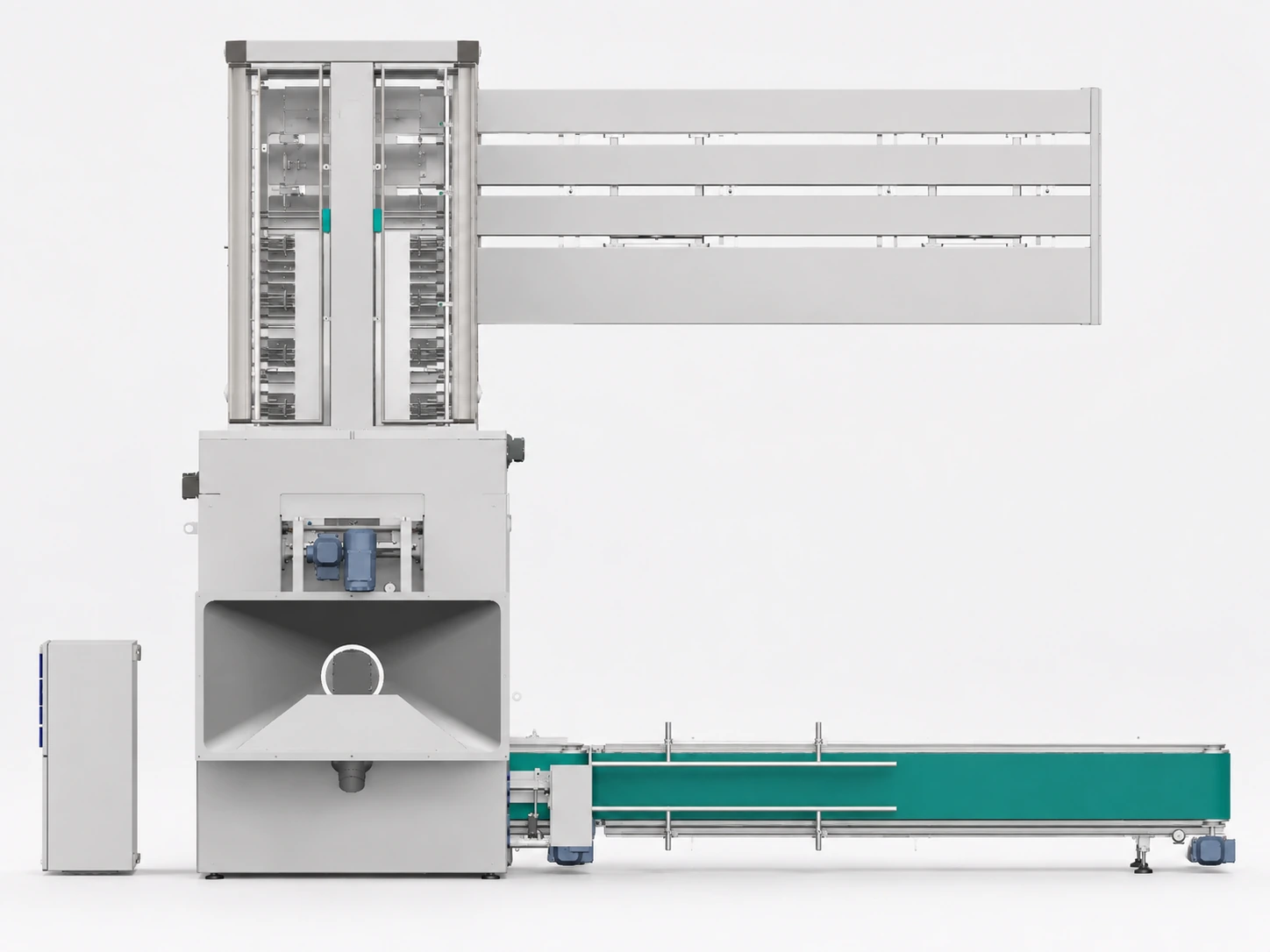

PROD-KAP-1140-HERO-01Product Visual

Key Specifications

Model

KAP-1140

Capacity

Up to 1400 bags/hour

Bag types

Gusseted, gusseted flat bottom, and pillow bags

Bag materials

Paper, PE, laminated and non-laminated woven PP

Typical bag weight

10–50 kg

Typical applications

Sugar, Animal Feed, Rice, Seeds, Plastic Pellets, Fertilizer

Final capacity depends on material flowability, bag specification, feeding method, sealing type and complete line configuration.

Features

Versatile bag handling

  • • Adjustable filling spout for different open-mouth bag sizes.
  • • Compatible with paper, PE, laminated woven PP and non-laminated woven PP bags.
  • • Suitable for sugar, animal feed, rice, seeds, plastic pellets and fertilizer applications.

Stable automatic operation

  • • Automatic bag placing, positioning and release for continuous operation.
  • • Bag detection helps confirm correct bag placement before filling.
  • • Controlled bag transfer helps reduce spillage between filling, closing and conveying.
  • • Filling, weighing and transfer modules are coordinated for stable line operation.

Integrated weighing and feeding

  • • Works with gravity, belt or screw feeding configuration according to material characteristics.
  • • Net weighing configuration supports industrial bagging accuracy and repeatability.
  • • Feeding and weighing modules can be selected according to bulk density, flowability and target capacity.

Easy operation and maintenance

  • • PLC-based control system with operator interface for daily operation and parameter adjustment.
  • • Designed for easier troubleshooting, inspection and maintenance.
  • • Access-friendly structure supports cleaning and routine service work.
  • • Modular line configuration supports easier installation and commissioning.

Line-ready configuration

  • • Can connect with bag closing, conveying, check weighing, metal detection and palletizing modules.
  • • Supports complete line layout design according to plant space and downstream automation.

Available Machine Options

Full stainless steel construction for projects requiring stainless steel frames and structural parts.
Dust collection connection for cleaner filling conditions.
Product deaeration or bag settling assistance when required by material characteristics.
Bag closing system for sewing, heat sealing or project-specific closing requirements.
Bag turning, flattening or shaping devices before conveying.
Quick adjustment design for different bag sizes.
Weighing and feeding configuration selected according to material flowability and target capacity.
Interface for coding / printing equipment when required.

Technical Specifications

Capacity

Up to 1400 bags/hour

Bag weight range

10–50 kg

Bag types

Gusseted, gusseted flat bottom, and pillow bags

Bag materials

Paper, PE, laminated and non-laminated woven PP

Bag dimensions

Bag length: 550–1150 mm; Bag width: 350–550 mm

Power supply

380/400V, 3PH, 50Hz (other voltages available)

Air supply

5.5–6 bar compressed air

Typical footprint

Length xxxx mm × depth xxxx mm

Control system

PLC-based control system with operator interface

Typical footprint is for reference only; actual dimensions may vary according to equipment configuration and site layout.

Typical Applications

SugarAnimal FeedRiceSeedsPlastic PelletsFertilizer

Engineering Selection Notes

KAP-1140 capacity and configuration depend on material characteristics, bulk density, target bag weight, bag specification, feeding method, weighing configuration, closing method, plant layout and downstream automation requirements. KWLE engineers will evaluate the proper feeding, filling, closing and line configuration according to the project requirements.
