Dual-head bottom-up filling
Dual-head filling supports higher-output powder bagging lines while maintaining bottom-up filling, controlled powder flow and dust containment.
KBF-2060 Model Detail
KBF-2060 Dual-Head Bottom-Up Powder Filling System
KBF-2060 is a dual-head bottom-up powder filling system for higher-output powder bagging lines. It is designed for powder materials that require controlled filling, product deaeration and dust containment while achieving higher line capacity with dual-head filling.
Up to 600 bags/hourDual-head fillingBottom-up fillingHigher outputDust containment
PROD-KBF-2060-HERO-01

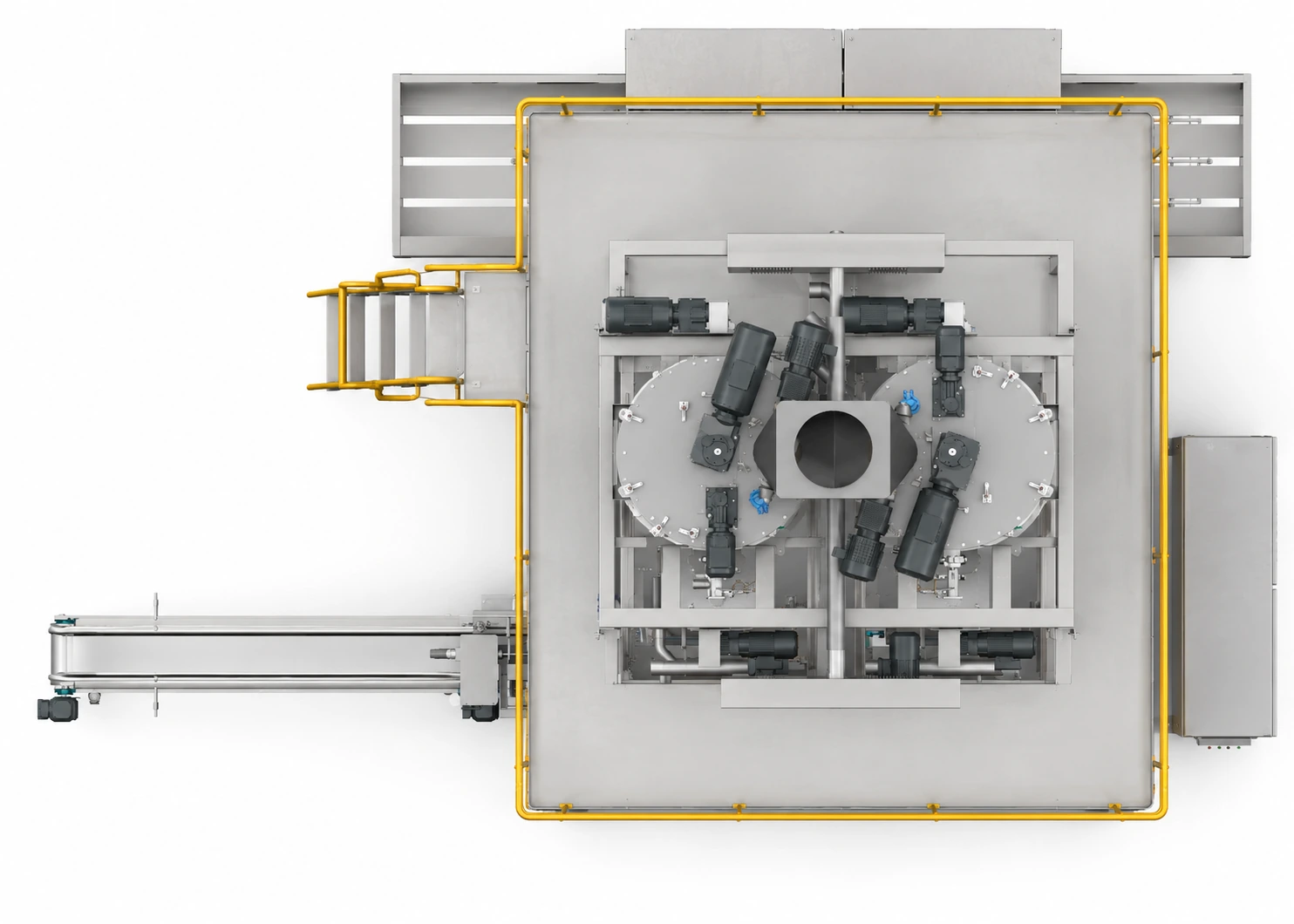

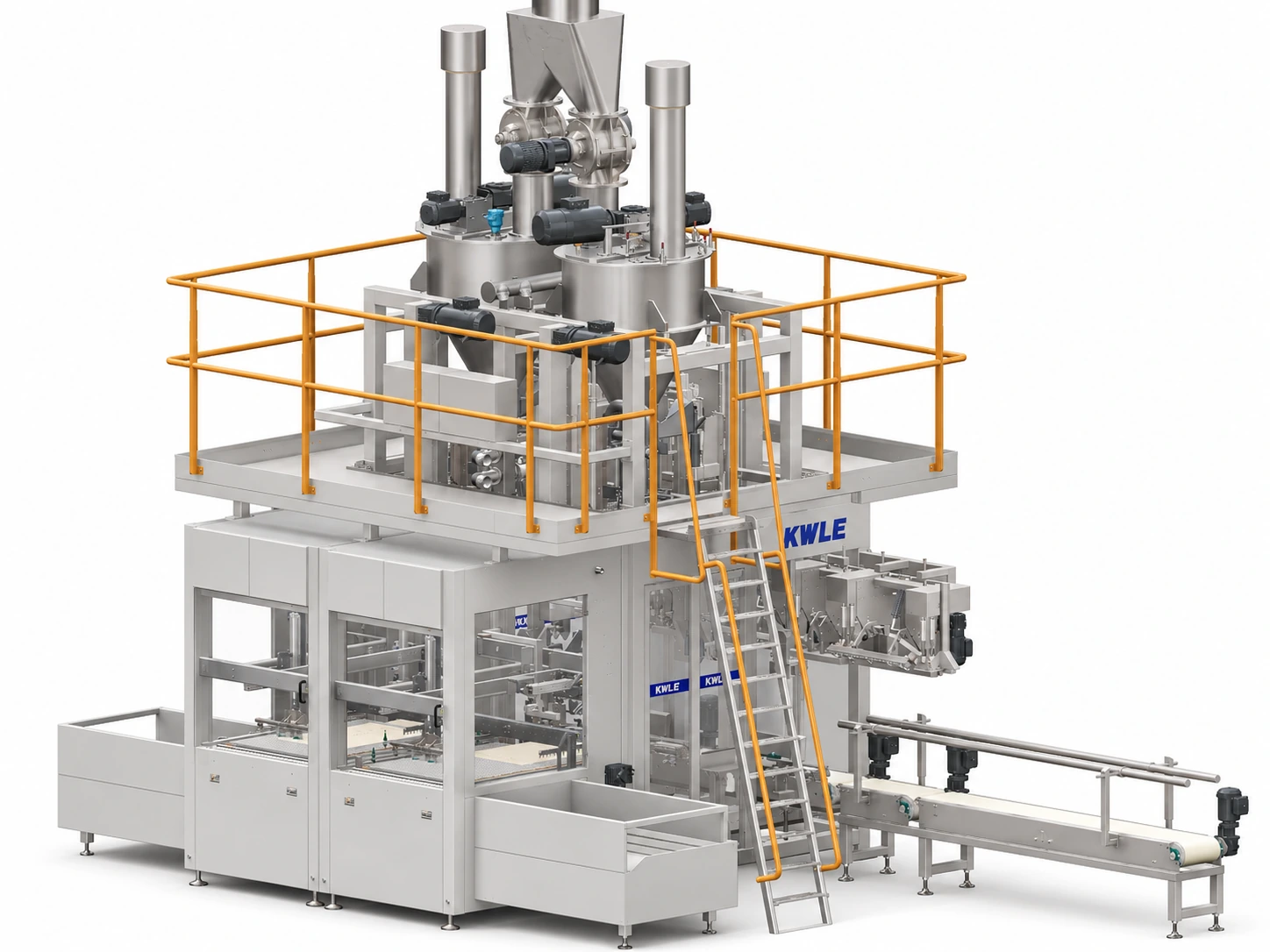

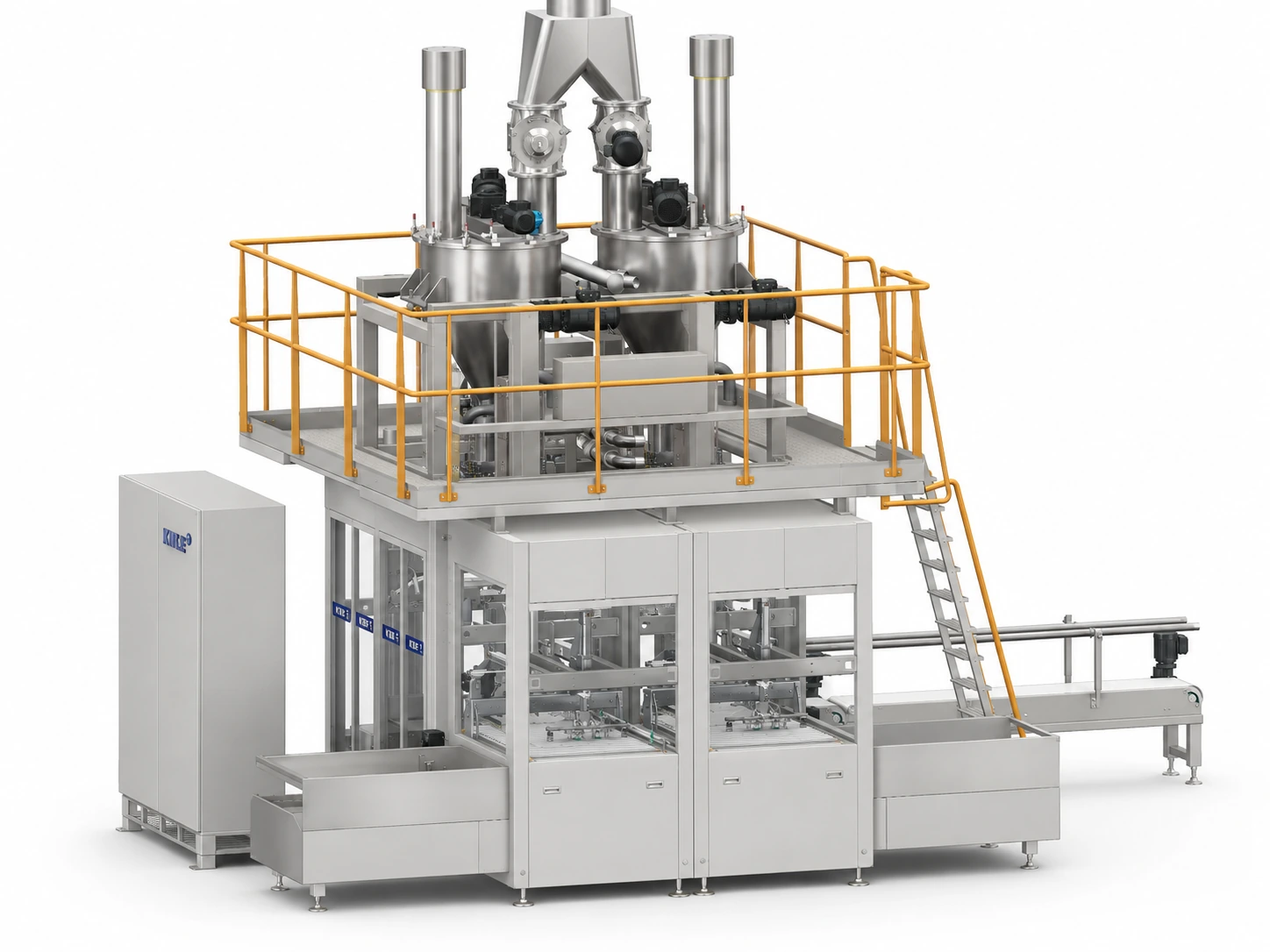

Product Visual
Key Specifications
Model
KBF-2060
Capacity
Up to 600 bags/hour
Filling type
Bottom-up powder filling
Filling heads
Dual-head filling
Bag transfer layout
Forward-transfer layout
Typical bag weight
10–50 kg
Typical applications
Starch, Flour, Premix, Food Additives, Feed Additives, Milk-powder-like Products
Final capacity depends on powder flowability, bulk density, air content, dust level, bag specification, feeding method, deaeration requirements and complete line configuration.
Features
Forward-transfer layout
Forward-transfer bag handling supports shorter transfer cycle time and coordinated bag movement for higher-output powder filling operations.
Controlled filling
The feeding process follows a controlled feeding curve, smoothly transitioning from high-rate feeding to fine dosing as the target weight is approached. This helps balance filling speed, weighing accuracy and stable powder flow.
Dust containment
The filling spout, bag holding area and dust collection connection can be configured to help reduce dust leakage around the bag mouth.
Product deaeration
Product deaeration and bag-mouth air release can help reduce entrained air, improve bag shape and support downstream conveying and palletizing.
Easy operation and maintenance
PLC-based control and access-friendly structure support operation, inspection, cleaning and routine service work.
Optional Configurations
Product deaeration and bag-mouth air release
Secondary dosing
Full stainless steel construction
Coding / printing interface
Quick adjustment for bag sizes
Typical Applications
StarchFlourPremixFood AdditivesFeed AdditivesMilk-powder-like Products
Powder Handling Challenges
Sticky powdersDust-prone powdersAir-entrained powdersPoor-flowing powders
Technical Specifications
Capacity
Up to 600 bags/hour
Filling type
Bottom-up powder filling
Filling heads
Dual-head filling
Bag transfer layout
Forward-transfer layout
Bag weight range
10–50 kg
Bag materials
Paper, PE, and woven PP bags
Bag dimensions
Bag length: xxxx mm; Bag width: xxxx mm
Power supply
380/400V, 3PH, 50Hz (other voltages available)
Air supply
5.5–6 bar compressed air
Typical footprint
Length xxxx mm × depth xxxx mm
Control system
PLC-based control system with operator interface
Line Integration
KBF-2060 can be integrated into complete powder bagging lines with conveying, bag closing, check weighing, metal detection, palletizing and pallet load covering equipment when required. These downstream modules are selected according to project layout, product requirements and automation level.
Engineering Selection Notes
KBF-2060 configuration depends on powder flowability, bulk density, air content, stickiness, dust level, target bag weight, bag material, bag dimensions, filling speed, deaeration requirements, dual-head filling layout and plant layout. KWLE engineers evaluate these factors to select the filling spout, feeding method, deaeration arrangement, dust collection connection and complete line configuration.
